- Size: 10000
- Place of Origin: china
- Brand Name: YILI
- Model Number: 1BJX-2.0 18
- Weight: 1200.000 kg

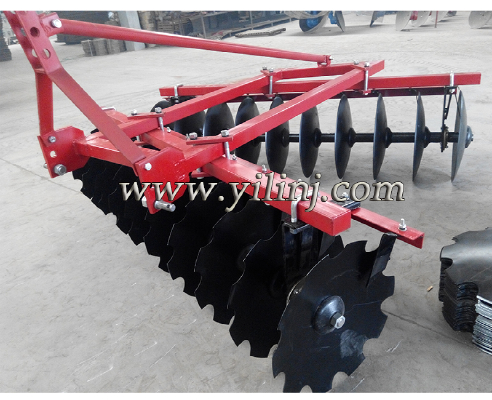

The 1BJX/1BJ product is mainly applicable for breaking up the clods of farmland, light and medium soil after furrow and loosening soil and fertilzer before sewing. With the reasonable structure, the machine is durable in service, easy to be operated and maintained
The 1BJ-4.4 product with 40 discs folded wing is mainly applicable for operation on middle and light soil as harrowing instead of plowing, loosening soil before sowing, cleaning residues of crops and weeds. Use folding wing structure and hydraulic pressure rubber tire to transport, with wide coverage, reasonable structure ability to rake; easy to use and maintain, etc.
Main Specifications
Model | 1BJX-1.7 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 | 1BJX-3.0 | 1BJ-4.4 | |
L*W*H | L | 1850 | 198 | 198 | 278 | 297 | 330 | 542 |
W | 201 | 224 | 247 | 247 | 268 | 290 | 432 | |
H | 132 | 132 | 132 | 132 | 132 | 132 | 113 | |
Working width(m) | 1.7 | 2.0 | 2.2 | 2.4 | 2.5 | 3.0 | 4.4 | |
Working depth(mm) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | |
No. of disc | 16 | 18 | 20 | 22 | 24 | 28 | 40 | |
Dia. of disc(mm) | 560 | 560 | 560 | 560 | 560 | 560 | 560 | |
Weight(kg) | 400 | 434 | 463 | 604 | 700 | 780 | 1750 | |
Fitted power(kw) | 33 | 37~44 | 37~47.8 | 47.8 | 54.9 | 62 | 73.5 | |
Linkage | Standard three-point mounted | Trailed |
